BMD Series

The BMD Series represents timeless beauty. Classic and elegant, this series of doors create a warm and inviting environment for any home. They are masterpieces with beautifully carved raised and fielded panels, that are enhanced by traditional solid bolection mouldings. The use of high quality hardwood veneer and eco-friendly door core options will ensure that these doors last for years to come.

BMD Series (Stain Grade)

BMD Series (White Primed - Closed Grain)

BMD Series (White Primed - Open Grain)

 Certifire-FD30 Decorative Fire Door.
*For glazing door with glass bar, the moulding will be as per standard manufacturer design
*For fire door glazing bead detail, the moulding will be as per approved and tested design

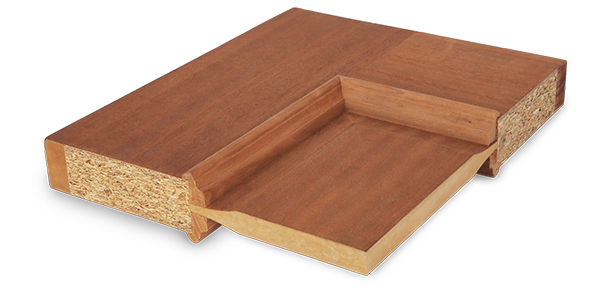

Standard Door Construction of Series BMD

1Non-Fire Rated Door Section

Option A

Option A


Stiles and Rails Substrate Particleboard Core
Panel Substrate Options
a) 15mm MDF Board
b) 25mm MDF Board
Bolection Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm
Option A (with glazing detail)

Option A (with glazing detail)


Stiles and Rails Substrate Particleboard Core
Panel Substrate Options
a) 4mm Flat Tempered Glass
b) 6mm Bevel Tempered Glass
Bolection Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm
Option A (with glazing detail)

Option B


Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate Options
a) 15mm MDF Board
b) 25mm MDF Board
Bolection Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm
Option A (with glazing detail)

Option B (with glazing detail)


Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate Options
a) 4mm Flat Tempered Glass
b) 6mm Bevel Tempered Glass
Bolection Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm

Standard Door Construction of Series BMFD

230 minutes Fire Rated Door Section

30 minutes Fire Rated Door




Stiles and Rails Substrate 40mm Particleboard Sandwiched with 2.5mm MDF on Both Side
Panel Substrate Sandor Proprietary Fire door Panel System
Bolection Moulding Solid Hardwood
Available Thickness 45mm
30 minutes Fire Rated Door

With Glazing detail fire rated


Stiles and Rails Substrate 40mm Particleboard Sandwiched with 2.5mm MDF on Both Side
Panel Substrate Options
a) at 6mm Cerifire Approved fire Rated Glass
b) 7mm Certifire Approved Fire Rated Glass
Bolection Moulding Solid Hardwood
Available Thickness 45mm

Bolection Raised Moulding Profile Options

1

2

3

4

5

6

7
