PMD Series

The PMD Series highlights the beauty and warmth of wood through its collection of intricately moulded panel doors. Combining time honored craftmanship and modern technology, this series of doors are as enduring as they are attractive. The various panel configurations ensure sufficient options for individual preferences.

PMD Series (Stain Grade)

PMD Series (White Primed)

 Certifire-FD30 Decorative Fire Door.
*For glazing door with glass bar, the moulding used will be as per manufacturer design
*For fire door glazing bead detail, will be as for approved design

Sandard Door Construction of PMD Series

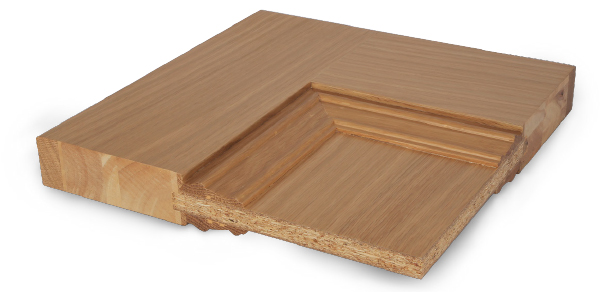

1Non-Fire Rated Door Section with Raised and Fielded Panel

Option A

Option A


Stiles and Rails Substrate Particleboard Core
Panel Substrate 9mm Particleboard sandwiched with 9mm MDF Board on both sides
Bolection Moulding Solid Hardwood
Available Thickness 40mm, 45mm
Option A (with glazing detail)

Option A (with glazing detail)


Stiles and Rails Substrate Particleboard Core
Panel Substrate Options
a) 4mm Flat Tempered Glass
b) 6mm Bevel Tempered Glass
Bolection Moulding Solid Hardwood
Available Thickness 40mm, 45mm
Option B

Option B


Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate 9mm Particleboard sandwiched with 9mm MDF Board on both sides
Bolection Moulding Solid Hardwood
Available Thickness 40mm, 45mm
Option B (with glazing detail)

Option B (with glazing detail)


Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate Options
a) 4mm Flat Tempered Glass
b) 6mm Bevel Tempered Glass
Bolection Moulding Solid Hardwood
Available Thickness 40mm, 45mm

2Non-Fire Rated Door Section with Flat Panel

Option A

Option A


Stiles and Rails Substrate Particleboard Core
Panel Substrate 15mm Particleboard
Bolection Moulding Solid Hardwood
Available Thickness 40mm, 45mm
Option A (with glazing detail)

Option A (with glazing detail)


Stiles and Rails Substrate Particleboard Core
Panel Substrate Options
a) 4mm Flat Tempered Glass
b) 6mm Bevel Tempered Glass
Bolection Moulding Solid Hardwood
Available Thickness 40mm, 45mm
Option B

Option B


Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate 15mm Particleboard
Bolection Moulding Solid Hardwood
Available Thickness 40mm, 45mm
Option B (with glazing detail)

Option B (with glazing detail)


Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Board
Panel Substrate Options
a) 4mm Flat Tempered Glass
b) 6mm Bevel Tempered Glass
Bolection Moulding Solid Hardwood
Available Thickness 40mm, 45mm

Standard Door Construction of PMFD Series

130 minutes Fire Rated Door Section with Raised and Fielded Panel

30 minutes Fire Rated Door Section with Raised and Fielded Panel



Stiles and Rails Substrate Finger - Jointed & Laminated Hard wood Block Board
Panel Substrate
 Sandor Proprietary
Fire door Panel
System

Bolection Moulding Solid Hardwood
Available Thickness 45mm
30 minutes Fire Rated Door Section with Raised and Fielded Panel



Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate Options
a) 6mm Certifire Approved Fire Rated Glass
b) 7mm Certifire Approved Fire Rated Glass
Bolection Moulding Solid Hardwood
Available Thickness 45mm

230 minutes Fire Rated Door Section with Flat Panel

30 minutes Fire Rated Door Section with Raised and Fielded Panel
Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate
Sandor Proprietary
Fire Door Panel
System

Bolection Moulding Solid Hardwood
Available Thickness 45mm
30 minutes Fire Rated Door Section with Raised and Fielded Panel
Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate Options
a) 6mm Certifire Approved Fire Rated Glass
b) 7mm Certifire Approved Fire Rated Glass
Bolection Moulding Solid Hardwood
Available Thickness 45mm

*Glazing system will be paired with approved fire rated glass.

Pocket Moulding Panel Profile Options

1Pocket Moulding Panel Profile Detail

2

3

4
