SED Series

The SED Series combines timeless design elements with classic detailing. These elegantly solid doors are sculpted with raised and fielded panels showcasing a look of authenticity. They are made from the finest hardwood veneer and eco-friendly door core options.

SED Series

SED Series (Glazed Panel)

Installing glazed panels in a door adds a new dimension to its design. Specifying the right glass is paramount to ensure the door delivers the level of performance needed. Sandor offers a wide range of glazed panel options so that every door can be tailored to meet varying privacy, security, energy and acoustic needs.

 Certifire-FD30 Decorative Fire Door.
*For glazing door with glass bar, the moulding used will be as per manufacturer design
*For fire door glazing bead detail, will be as for approved design

Standard Door Construction of SED Series

1Non-Fire Rated Door Section

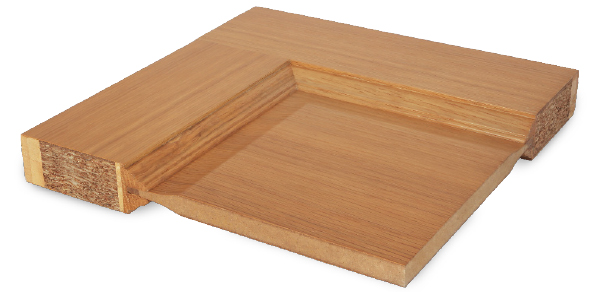

Option A

Option A


Stiles and Rails Substrate Particleboard Core
Panel Substrate Options
a) 15mm MDF Board
b) 25mm MDF Board
Ovolo Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm
Option A (with glazing detail)

Option A (with glazing detail)


Stiles and Rails Substrate Particleboard Core
Panel Substrate Options
a) 4mm Tempered Glass
b) 6mm Bevelled and Tempered Glass
Ovolo Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm
Option B

Option B


Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate Options
a) 15mm MDF Board
b) 25mm MDF Board
Ovolo Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm
Option B (with glazing detail)

Option B (with glazing detail)


Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate Options
a) 4mm Tempered Glass
b) 6mm Bevelled and Tempered Glass
Ovolo Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm

Standard Door Construction of SEFD Series

230 minutes Fire Rated Door Section

30 minutes Fire Rated Door Section with Raised and Fielded Panel
Stiles and Rails Substrate 40mm Particleboard sandwiched with 2.5mm MDF on both side
Panel Substrate Sandor Proprietary Fire door Panel System
Ovolo Moulding Solid Hardwood
Available Thickness 45mm
30 minutes Fire Rated Door Section with Raised and Fielded Panel
Stiles and Rails Substrate 40mm Particleboard sandwiched with 2.5mm MDF on both side
Panel Substrate Options
a) 6mm Certifire Approved Fire Rated Glass
b) 7mm Certifire Approved Fire Rated Glass
Ovolo Moulding Solid Hardwood
Available Thickness 45mm

Standard Door Construction of SED Series (Grooved Panel)

Option A
Stiles and Rails Substrate Particleboard Core
Panel Substrate 15mm MDF Board with Timber Inserts
Ovolo Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm
Option B
Stiles and Rails Substrate Finger - Jointed & Laminated Hardwood Block Board
Panel Substrate 15mm MDF Board with Timber Inserts
Ovolo Moulding Solid Hardwood
Available Thickness 35mm, 40mm, 45mm

Ovolo Profile Option

Option A

Option B

Option C

Option D
